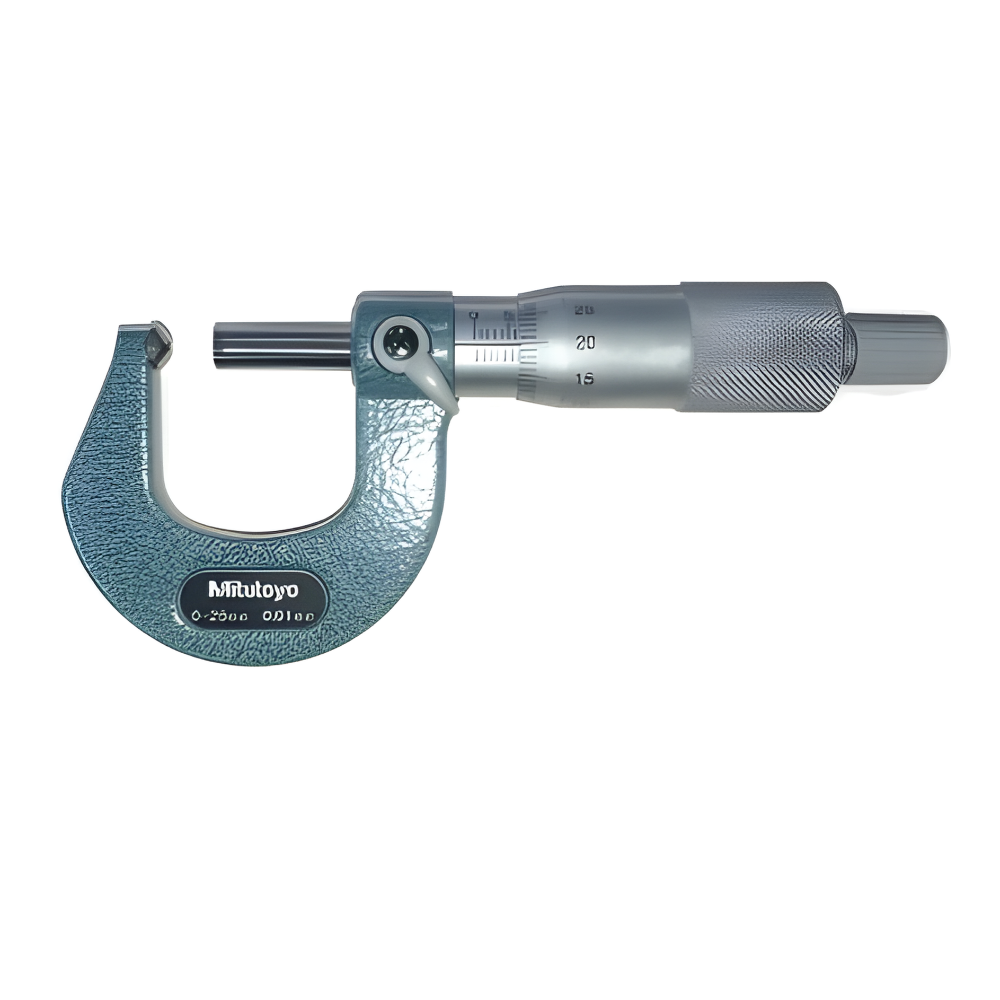

Mitutoyo Tube Micrometer 0-25mm Model: 115-115 Made in Japan

Mitutoyo Tubular Micrometer

Model: 115-115

Units: Metric

Range: 0-25mm

Accuracy: 3m

Graduation: 0.01mm (1-Spherical)

Anvil/Spindle: S-F

Flatness: 0.6m

Remarks: D: 10mm

The Mitutoyo Tubular micrometer is available with either a Tubular face on the anvil and a flat spindle measuring surface or with tubular measuring surfaces on the anvil and spindle, depending on the application

 A ratchet-stop mechanism provides uniform pressure on a workpiece for precise, repeatable measurements and eliminates over-speed error

The micrometer has a measurement range of 0 to 1.0 (0 to 25.4mm), resolution of 0.00005 (0.001mm), and an accuracy of +/- 0.0001

Measurements are displayed on a mechanical analog mechanical counter on the micrometers frame

Designed to measure the wall thickness of various tubing, curved parts and pipe wall thickness

Tubular measuring faces are 0.59  in diameter and carbide-tipped for durability

Ratchet mechanism provides an audible click to ensure measurement is being performed at a constant force

Satin chrome finish on the sleeve and laser etched scale on thimble for easier reading

Frame has a non-slip finish for better grip in shop environments

Includes a standard bar except for 0-1 and 0-25mm models

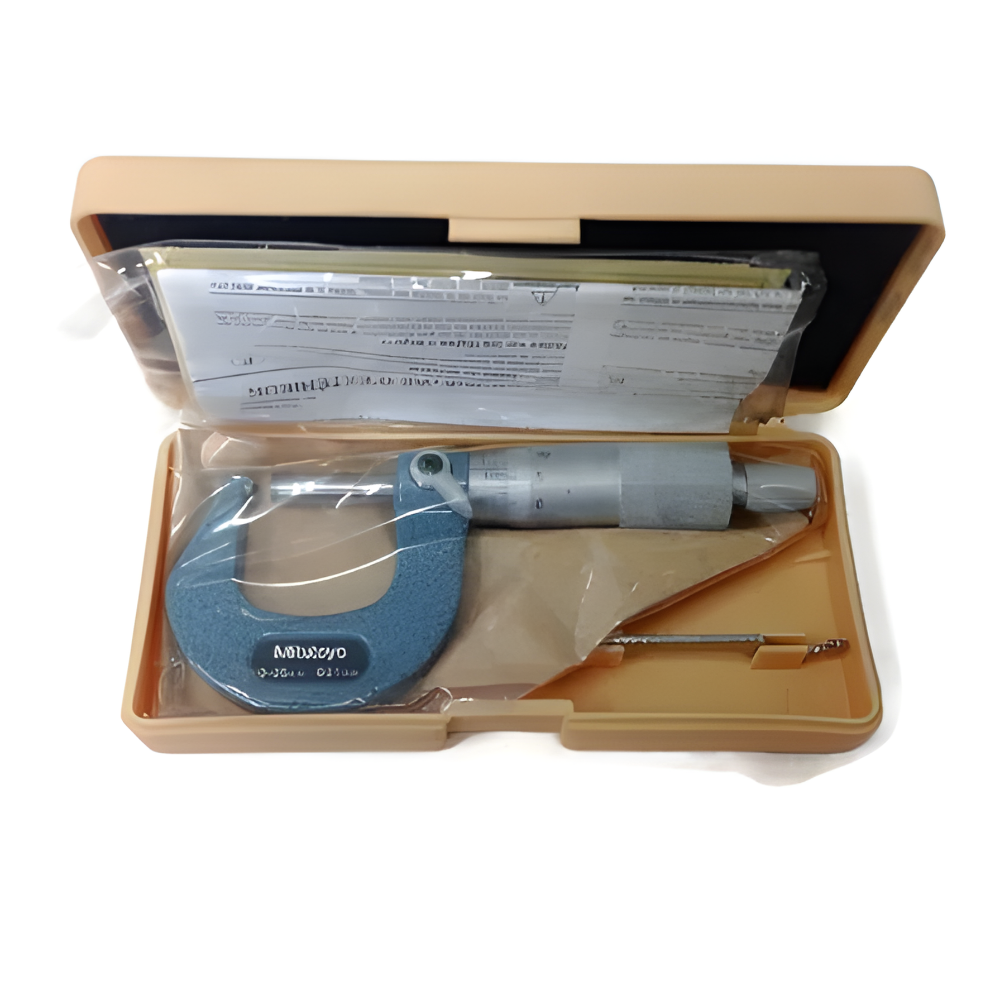

Supplied in fitted plastic case

Made in Japan
